GitLab

1. Application

2. Introduction

2.1 Document purpose

This document is a low level design - LLD which aims to describe how the architecture evoked in high level design - HLD will be implemented. This document will describe the protocols used in the target architecture, how to implement them and any modifications made to their default behavior. Once validated by Thales, this document will then serve as a basis for the implementation of configurations on equipment.

2.2 Document scope

This document is not a manual and is not intended to replace the reference literature describing with great precision all network protocols.

The protocols used will be briefly described as well as the modifications made to their default behavior.

2.3 Referenced documentation

3. Component general description

This component is part of Software Factory as a Product (SWaaP), and it is visible in the TASD .

GitLab is a platform for software development, collaboration, and delivery. GitLab includes a distributed version control based on Git, including features such as access control, bug tracking, software feature requests, task management, and wikis for every project, as well as snippets.

Besides source code management, GitLab as a platform features team planning, DORA metrics, code review workflow, workspaces, continuous integration, code testing and coverage, package registries, code quality reports and many more (all features listed on official site )

4. Functional & Business Requirements

No formal list of requirements has been expressed by clients. It is designed and developed based on business use cases.

4.1 Feature summary

4.2 Prerequisites

Every prerequisites of the product are applicable to this component. In detail:

• Kubernetes and Flux. See the TASD §4.1.2 Prerequisites for supported version.
• PostgreSQL 16 or later - check official documentation

4.3 Variability

No variability is supported.

5. Architecture decision record

Here is a list of decisions:

Table 3 - List of architecture decision record.

5.1 ADR-GIT-001: Add GitLab as a component of the product

5.1.1 Status: Accepted

• Creation of sf-package in September 2022
• Recorded in [SWF organization] in April 2023

5.1.2 Context

• See ADR001 in TASD .

5.1.3 Decision

• Introduce GitLab in the product from its current implementation on TDP C2 & TDP C3-CA

5.1.4 Consequences

• Add GitLab to the product

6. Architecture description

6.1 Business architecture and allocation to services

You will find in Figure 1 business architecture for software code and CI/CD engineering allocated to services:

Figure 1 - Business architecture allocated to services.

Note: in dash, external items.

6.2 Application architecture

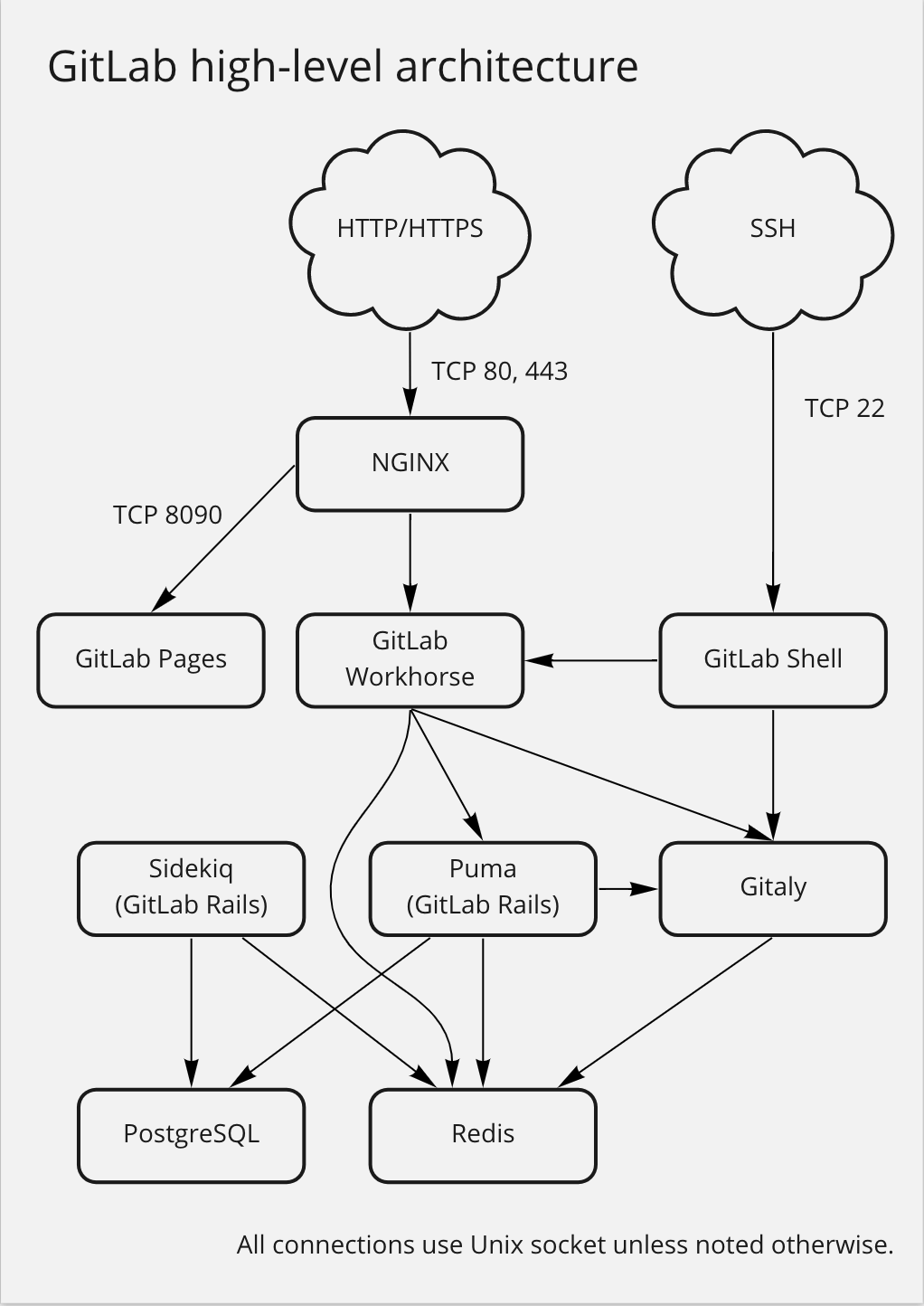

Figure 2 - GitLab High Level Architecture Diagram

6.2.1 Layers

GitLab can be considered to have two layers from a process perspective:

Monitoring: Anything from this layer is not required to deliver GitLab the application, but allows administrators more insight into their infrastructure and what the service as a whole is doing.

Core: Any process that is vital for the delivery of GitLab as a platform. If any of these processes halt, a GitLab outage results. For the Core layer, you can further divide into:

• Processors: These processes are responsible for actually performing operations and presenting the service.
• Data: These services store/expose structured data for the GitLab service.

6.2.1.1 Component details

This is a list of the GitLab components that can be configured with SWaaP deployment (GitLab chart). Full list is available in GitLab documentation :

• Database migrations: migrations while upgrading GitLab.
• Gitaly: Git RPC service for handling all Git calls made by GitLab.
• GitLab Exporter: Generates a variety of GitLab metrics.
• GitLab Pages (optional): Hosts static websites.
• GitLab agent (optional): Integrate Kubernetes clusters in a cloud-native way.
• GitLab self-monitoring - Alertmanager: Deduplicates, groups, and routes alerts from Prometheus
• GitLab self-monitoring - Grafana (optional): Metrics dashboard
• GitLab Shell: Handles Git over SSH sessions
• GitLab Workhorse: Smart reverse proxy, handles large HTTP requests
• Inbound email (SMTP) (optional): Receive messages to update issues
• nginx: Routes requests to appropriate components, terminates SSL
• Outbound email (SMTP) (optional, but recommended): Send email messages to users
• Puma (GitLab Rails): Handles requests for the web interface and API
• Redis: Caching service
• Registry (optional): Container registry, allows pushing and pulling of images
• Sidekiq: Background jobs processor

Others components that SWaaP is not supporting:

• Certificate Management: TLS Settings, Let’s Encrypt.
• Elasticsearch: Improved search within GitLab.
• GitLab Geo: Geographically distributed GitLab site.
• MinIO: Object storage service.
• PostgreSQL Exporter: Prometheus endpoint with PostgreSQL metrics
• Praefect: A transparent proxy between any Git client and Gitaly storage nodes.
• Redis Exporter: Prometheus endpoint with Redis metrics

Nota:

• Runners are not deployed integrated in GitLab, but considered as a separate component. See TASD .

6.2.1.2 Integrations

Project integrations can be configured and enabled by project administrators. As a GitLab instance administrator, you can set default configuration parameters for a given integration that all projects can inherit and use, enabling the integration for all projects that are not already using custom settings.

You can update these default settings at any time, changing the settings used for all projects that are set to use instance-level or group-level defaults. Updating the default settings also enables the integration for all projects that didn’t have it already enabled.

These integrations are enabled by default:

• Apple App Store Connect: The Apple App Store Integration adds a few CI variables to the CI jobs with access credential information provided by Apple. This information is used to authenticate with Apple when testing the integration or during the build process.

• Asana: Webhook event: push

• Assembla: Webhook event: push

• Atlassian Bamboo: Webhook event: push

• Beyond Identity This checks that a provided GPG key ID is authorized to sign Git commits. Data sent: GPG Key, committer email.

• Bugzilla: Webhook event: push

• Buildkite: Webhook event: push, merge_request, tag_push

• Campfire: Webhook event: push

• ClickUp: Webhook event: push

• Confluence Workspace: None, it is just a sidebar link to the confluence workspace

• Custom issue tracker: Webhook event: push

• Datadog: Webhook event: pipeline, build, archive_trace

• Diffblue Cover: This integration does not directly send any data to third parties. All it does is set a few CI variables . There is a companion CI template which must be configured separately and I think is out of scope here, but it almost certainly does send data to diffblue.

• Discord Notifications: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page, deployment

• Drone: Webhook event: push, merge_request, tag_push

• Emails on push: Webhook event: push, tag_push

• EWM: Webhook event: push

• External wiki: None, it is just a sidebar link to the external wiki

• GitGuardian: When a user performs a push, GitLab sends all changed files to GitGuardian API to scan the documents for sensitive data. More details

• GitHub: Webhook event: pipeline

• GitLab for Jira Cloud app: Documented in this section

• GitLab for Slack app: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page, deployment, incident, vulnerability

• Google Artifact Management: If enabled, GitLab sends to Google Cloud an authentication token payload with the data documented here .

• Google Chat: Webhook event: push, issue, confidential_issue, merge_request, no_page

• Google Cloud IAM: See the list of data sent through the OIDC custom claims

• Google Play: The Google Play Integration adds two CI variables to the CI jobs with access credential information provided by Google. This information is used to authenticate with Google when testing the integration or during the build process.

• Harbor: When setting up a Harbor integration on GitLab , we ask the user for a Harbor URL, project name, username, and password. We then use these information when connecting to the Harbor registry: we access the given URL, and send in the username, password, and the project name. Auth as part of the headers: "#{integration.username}:#{integration.password}" project_name as a parameter when accessing provided URL in the integration: "projects?project_name=#{integration.project_name}" The information sent to Harbor is the same set of data that was supplied when setting up the Harbor integration.

• irker (IRC gateway): Webhook event: push

• Jenkins: Webhook event: push, merge_request, tag_push

• JetBrains TeamCity: Webhook event: push, merge_request

• JetBrains YouTrack: Webhook event: push

• Jira: Webhook event: commit, merge_request

• Matrix notifications: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page, incident, vulnerability

• Mattermost notifications: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page, deployment, incident, vulnerability

• Mattermost slash commands: Can share data through slash commands . See the slash command presenter classes in lib/gitlab/slash_commands/presenters and ee/lib/ee/gitlab/slash_commands/presenters

• Microsoft Teams notifications: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page

• MockCI: Webhook event: push

• Mock monitoring: None, this is dev-only

• Packagist: Webhook event: push, merge_request, tag_push

• Phorge: Webhook event: push

• Pipeline status emails: Webhook event: pipeline

• Pivotal Tracker: Webhook event: push

• Pumble: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page

• Pushover: Webhook event: push

• Redmine: Webhook event: push

• Slack notification (deprecated): Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page, deployment, incident, vulnerability

• Slack slash commands: Can share data through slash commands . See the slash command presenter classes in lib/gitlab/slash_commands/presenters and ee/lib/ee/gitlab/slash_commands/presenters

• Squash TM: Webhook event: issue, confidential_issue

• Telegram: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page, incident, vulnerability

• Unify Circuit: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page

• Webex Teams: Webhook event: push, issue, confidential_issue, merge_request, note, confidential_note, tag_push, pipeline, wiki_page

• YouTrack:

GitLab documentation

YouTrack class , which inherits BaseIssueTracker , which inherits Integration(not much code here).

Also included is HasIssueTrackerFields.

The way external issue tracker integrations work is by supplying a URL for the external issue tracker to GitLab and the necessary authorization mechanism (usually API key from third-party issue tracker).

When an external issue tracker is configured, you can use a reference syntax in a commit or MR to link an MR to a YouTrack issue.

So the primary data exchanged would be :

GitLab Merge Request is linked to YouTrack Issue MR is visible in YouTrack. YouTrack Issue link is visible in GitLab MR (or commit)

• ZenTao (deprecated): None, it is just a sidebar link to ZenTao

6.2.1.3 External services

GitLab is using these external services:

• A Software Factory or mirror for deployment (PRE_001)
• Kubernetes with Flux (PRE_002, PRE_003)
• Persistent storage to store the configuration and cache (PRE_004)
• Ingress with TLS and DNS resolution associated for one entry point and certificates (PRE_005, PRE_006, PRE_007), classically:
  • https://gitlab.SF-DOMAIN for UI & API
  • https://registry.SF-DOMAIN for container registry
  • https://*.pages.SF-DOMAIN for Pages
  • wss://kas.SF-DOMAIN for KAS
• IAM (PRE_009); we recommend SAML SSO but GitLab supports several authentication providers
• Mail server (PRE_014); you can configure is using GitLab mail server configuration documentation
• Database (PRE_015); we recommend Managed PostgreSQL database. See official documentation . Alternative can be internal to namespace provided PostgreSQL database that is provided with the product.

6.2.2 User management

This role matrix has been defined in TASD:

For GitLab, a tenant can be a group, a subgroup or a project.

6.2.3 RACI

In addition of global RACI (Responsible, Accountable, Consulted, Informed) of the SWaaP defined in TASD, we propose this RACI at usage.

We recommend that the on/off boarding of a group/subgroup/project be done by the owner.

6.3 Delivery

Component is part of the Software Factory as a Product (SWaaP) delivery. See TASD for more details.

6.3.1 Latest Version

• Latest version editor:
  • Component registry: TBC on main branch
  • Helm chart repository
• SWaaP integration part

Version Chart 9.11.3 / GitLab 18.11.2

• Component registry:
  • nginx/controller
  • kubectl
  • gitlab-workhorse-ee
  • gitlab-webservice-ee
  • gitlab-toolbox-ee
  • gitlab-sidekiq-ee
  • gitlab-shell
  • gitlab-kas
  • gitlab-exporter
  • gitlab-container-registry
  • gitlab-pages
  • gitlab-mailroom
  • gitlab-base
  • gitaly
  • certificates
• Helm chart registry:
  • in SF delivery
  • From GitLab
• SWaaP integration part
• Component Merge Request in Reference
• Release changelog
• K6 Test report: pipeline
  • light_load
  • light_ui
  • gitlab_limits
  • gitlab_event_tracking
  • gitlab_ui_checkbox
  • heavy_load
• Integration Test report: pipeline
• Security Report:
  • SCA Report
  • SAST

6.4 Infrastructure architecture

6.4.1 Software Factory API

Here is a list of services that can be integrated with GitLab.

7. Operational and maintenance

7.1 Life cycle policy

Cadence of version is describe in the Product Lifecycle .

7.2 License

We support and recommend deployment with GitLab Ultimate license.

7.3 Deployment

The component is deployed as a standard component using Flux and SWaaP packaging. See TASD for more details.

7.4 IAM

We support and recommend integration with IAM using SAML SSO. This configuration can be done in chart value . See SCOM-GitLab for more details.

7.5 Scaling

GitLab uses multiple strategies for scaling depending on load and configuration. For details on this, please check out the official documentation .

7.6 Backup / restore

We recommend to manage point in time restore at platform level. Like that it is possible to restore synchronously:

• volumes,
• database,
• and object storage.

For information, GitLab proposes a backup procedure .
