VSCode GitLab extension

Introduction

The GitLab Workflow extension for VSCode enhances your development experience by integrating GitLab functionalities directly into your IDE. This guide will walk you through the installation, configuration, and key features of the extension.

Installation

1. Open VSCode
2. Go to the Extensions view (Ctrl+Shift+X)
3. Search for “GitLab Workflow”
4. Select “Install”

For detailed installation instructions, refer to the official extension documentation .

Configuration

To configure the GitLab Workflow extension for use with a private GitLab instance:

1. Generate a Personal Access Token in your GitLab instance with the api and read_user scopes.
2. In VSCode, open the command palette (Cmd/Ctrl + Shift + P).
3. Search for “GitLab: Add Account” and press Enter.
4. Enter the full URL of your GitLab instance (including http:// or https://).
5. Paste your Personal Access Token when prompted.

For more detailed configuration steps, see the official setup guide .

Key Features

1. GitLab CI/CD YAML Validation

The extension provides validation for your .gitlab-ci.yml files:

• Syntax highlighting for GitLab CI/CD configuration files
• Manual validation with detailed error reporting and suggestions
• Auto-completion for GitLab CI/CD keywords

To validate your .gitlab-ci.yml file:

1. Open your .gitlab-ci.yml file in VSCode
2. Open the command palette (Cmd/Ctrl + Shift + P)
3. Type “GitLab: Validate GitLab CI Config” and select it
4. The extension will validate your file and show any errors or warnings in the “Problems” panel

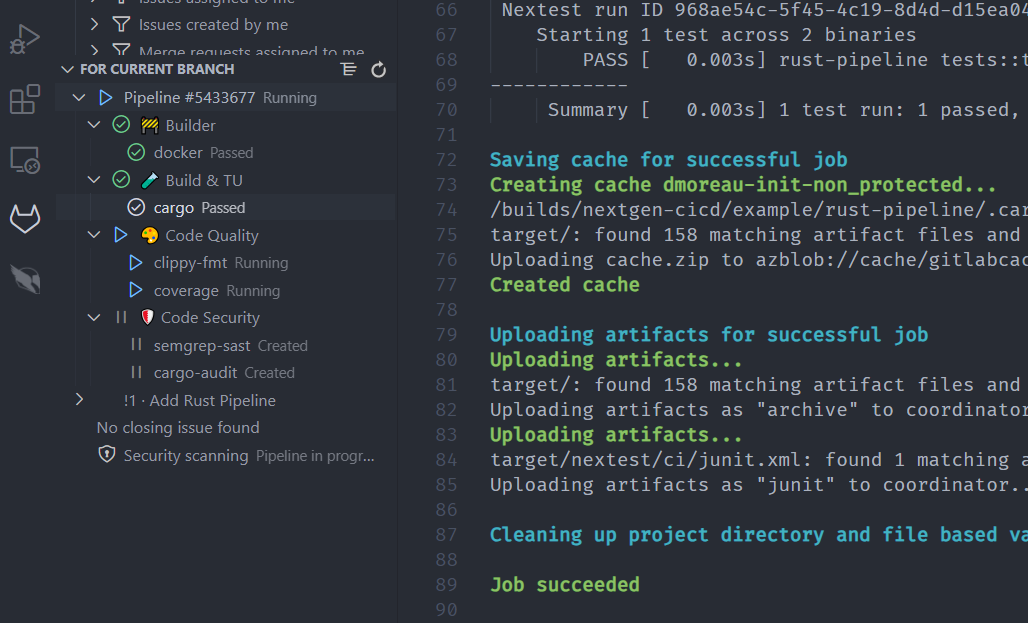

2. Pipeline Status and Logs

Monitor your GitLab CI/CD pipelines directly from VSCode:

• View pipeline status in the VSCode status bar
• Access detailed pipeline information and logs
• Trigger pipeline actions (e.g., retry jobs) from within VSCode

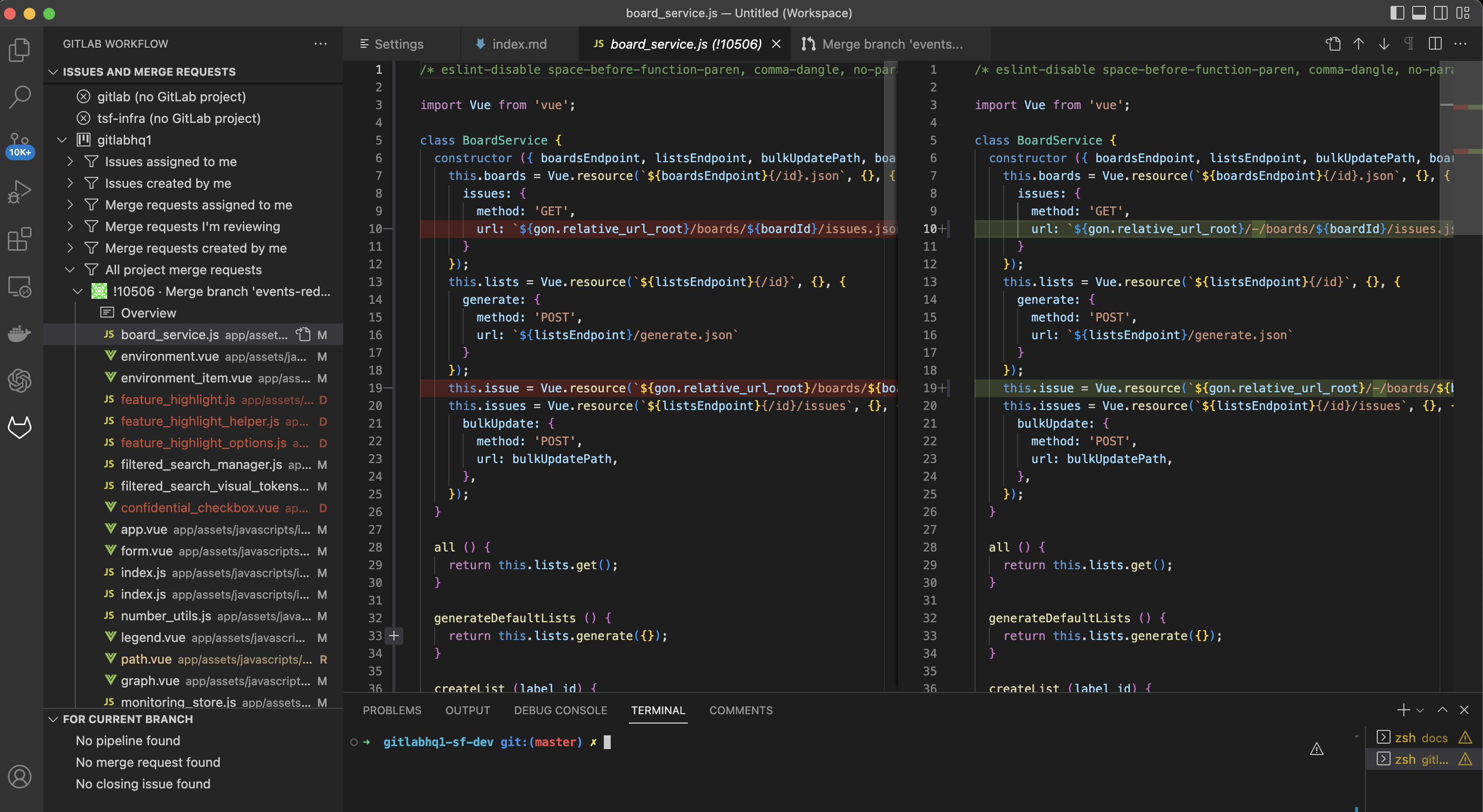

3. Efficient Merge Request Management

The extension excels at handling large merge requests:

• Browse and review merge requests up to five times faster than the GitLab Web UI
• Benefit from caching for instant loading of previously viewed diffs
• Comment on merge requests directly within VSCode
• Create a merge request

To use this feature:

1. Go to the “GitLab Workflow” section in your VSCode sidebar
2. Expand your GitLab project
3. Select “All project merge requests”
4. Select the merge request you want to review

Additional Resources

• Complete list of features
• Official extension documentation

Note for GitLab C3 Users

If you’re using GitLab C3, an internal GitLab instance, you may need to take additional steps to handle SSL certificate issues:

Option 1: Trust GitLab C3 Server Certificate

Add the GitLab C3 server certificate to your system’s certificate keychain and reload VSCode.

If you encounter the error “failed, reason: unable to verify the first certificate” when using GitLab C3, refer to these certificate handling options.

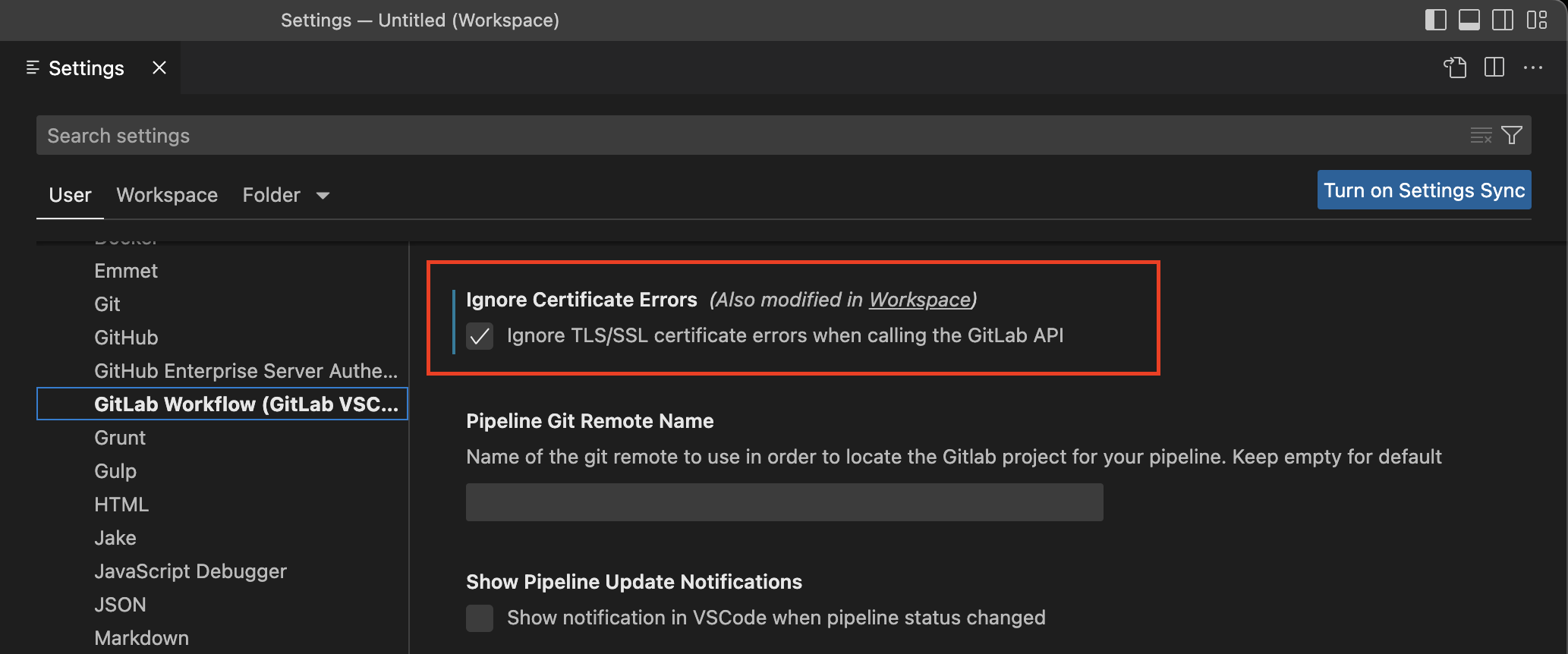

Option 2: Ignore Certificate Errors

1. Go to VSCode Settings
2. Navigate to Extensions > GitLab Workflow
3. Check the box for “Ignore Certificate Errors”

Sharing the extension with your team

Visual Studio Code provides a feature to recommend specific extensions to your team, ensuring a standardized development environment and tools.

This is especially useful to share and integrate GitLab functionalities seamlessly within your team’s development environment.

Manually Handling extensions.json

1. Create or Edit extensions.json File:

   • In your project’s .vscode directory, create or edit the extensions.json file. This is where you will specify the recommended extensions.

2. Add Recommended Extensions:

   • Include the extension identifiers for the GitLab extensions you want to recommend. Here’s how you can structure your extensions.json file:

{
    "recommendations": [
        "gitlab.gitlab-workflow",     // Official GitLab extension
        "asciidoctor.asciidoctor-vscode", // Official Asciidoctor extension for AsciiDoc support
        "eamodio.gitlens" // GitLens extension for Git superpowers in VSCode
    ]
}

1. Save and Sync:
   • Save the extensions.json file and commit the file to your repository.

Adding Directly from Visual Studio Code

1. Open the extensions view in VSCode:
   • Open the Extensions view by selecting the Extensions icon in the Activity Bar on the side of the window or by pressing Ctrl+Shift+X.
   • Use the search bar in the Extensions view to find GitLab-related extensions such as GitLab Workflow, asciidoctor-vscode …
2. Add the extensions as recommended
   • Right click on GitLab Workflow and select Add to Recommended Extensions
   • Repeat this step for any other extensions you want to recommend.
3. Save and Sync
   • Save the extensions.json file and commit the changes to your repository.

When other team members open the project in VSCode, they will be prompted to install the recommended extensions, ensuring everyone has the necessary tools.

For more detailed information, you can refer to on VSCode recommended extensions official page.
